Cantilever Umbrella

Type SA'Home

Material

Colors

  • M00FR White (00)
  • M11FR Yellow (11)
  • M21FR Beige (21)
  • M31FR Red (31)
  • M35FR Bordeaux (35)
  • M41FR Green (41)
  • M42FR Dark green (42)
  • M52FR Dark blue (52)
  • M81FR Anthracite (81)
  • M91FR Black (91)

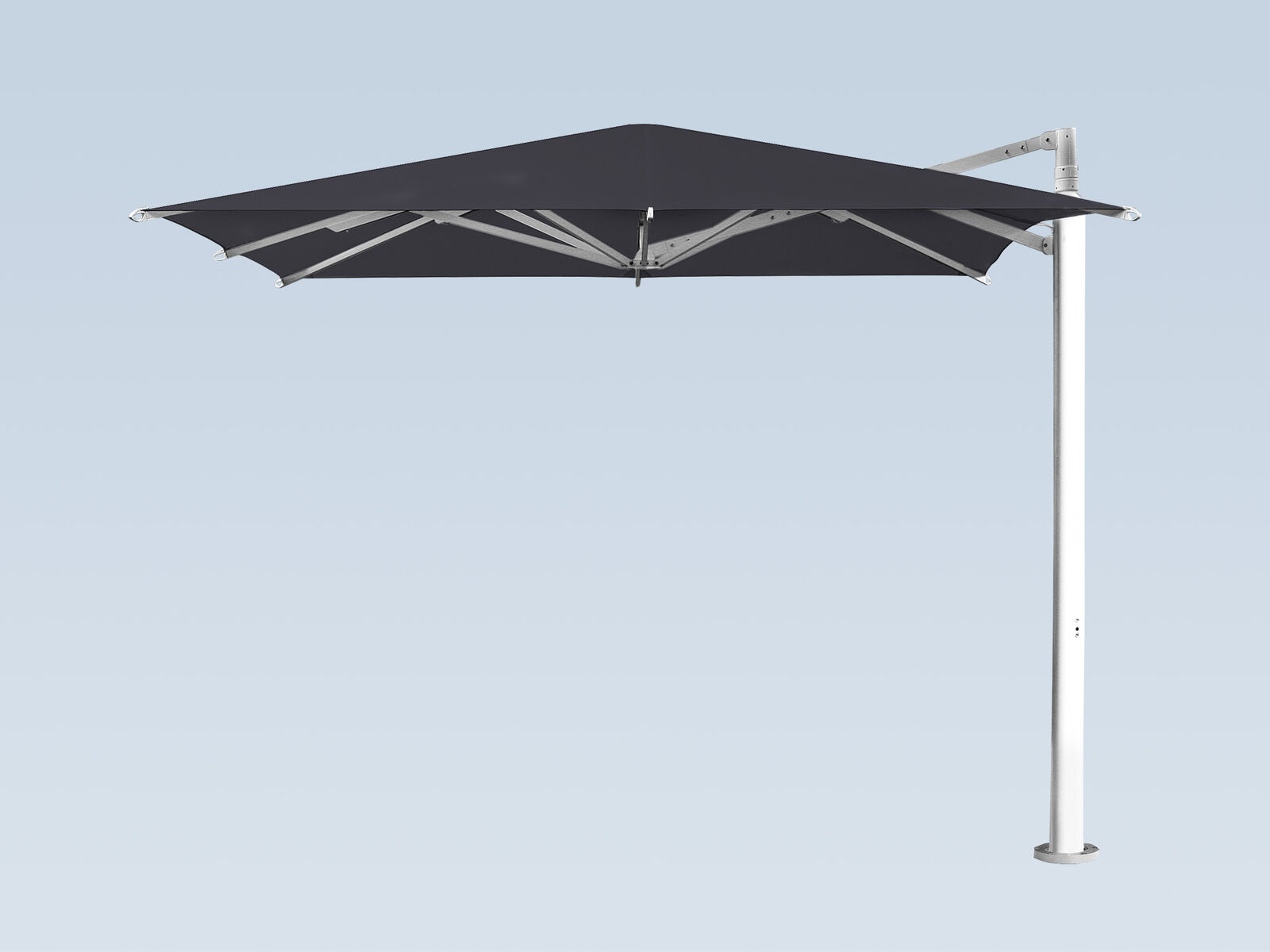

The cantilever umbrella is a special type of umbrella in which the umbrella mast is moved from the centre of the umbrella to the side. The membrane structure follows a classic design, but is supported from the side instead of from below. This ensures a high degree of freedom of space under the parasol.

The cantilever umbrella is easily opened and closed by means of a removable hand crank. It is rectangular and available in size 3x3m. The umbrella has an aluminium frame which can be powder-coated in white or anthracite. The design end caps protect the membrane from injuries at the edges and fix the membrane. The handle and the end caps can be produced in 6 colours. The shield mast type SA has an oval shape to ensure more stability.

We recommend the membrane MDT-tex 300 Acryl for this cantilever umbrella, because it fits perfectly to the habits of the umbrella. The sunshade should be anchored in the ground, it is possible to use ground sleeves or a core drilling with pile-driving sleeve.

The parasol type SA Home is ideally suited for objects that require a high degree of freedom of space, as the mast is not in the centre of the parasol. Gastronomy or hotels as well as private customers can use the space ideally for their seating arrangement without being affected by the mast.



  • Dimensions & Measures

  • Technical information

    DESCRIPTION

    MDT-tex introduces a premium range of technical parasols, specifically tuned to customers that require an aesthetic touch to our wind-stable umbrellas. The cantilever umbrella is ideally used for open spaces with pathways or to optimise seating arrangements, offering unrestricted space underneath the area of cover.

    The new Home collection offers several advantages over our classic line including strong and lightweight extruded hubs, fabric protecting corner caps and a simpler and lighter tensioning system. The new range of umbrellas set a new standard in terms of aesthetics and functionality without compromising on the quality standards that exist in our industrial ranges. As in our industrial range, our 3x3m cantilever SAH is not compromising wind resistance.

    COVER

    The textile cover is attached to the spoke ends by aluminium end caps and stainless steel bolts. The cover is replaceable and is fade, light and water resistant. It is designed to withstand all weather conditions.

    ANCHOR

    • Inground tube (type SA. oval 100 x 140 mm)

    PRINTING

    • Digital print
    • Screen print
    • Dispersion dye print

    MAST

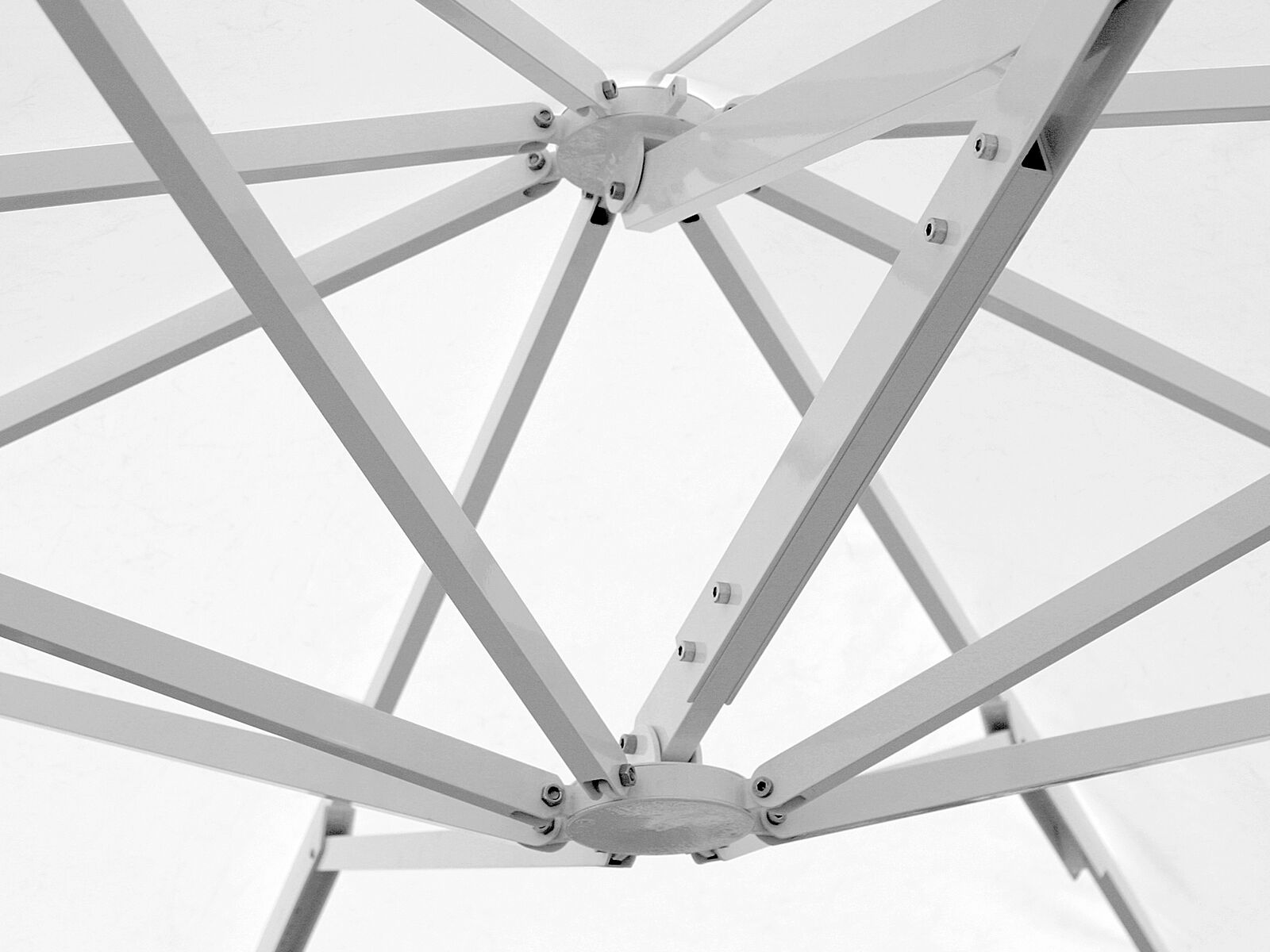

    Umbrella spokes are made of rectangular aluminium sections of 30 x 20 x 2 mm. The mast is made of a oval aluminium section of 100 x 140 mm. Connecting hubs are made of extruded aluminium high strength profile. All parts are screwed together and the frame, the end caps, acorn, hub and the handle is powder coated (Polyester powder ca. 80 μ).

    • White RAL 9010
    • Anthracite DB 703 MT GL PE

    MECHANICS

    The tension mechanism of the umbrella is operated by a crank handle that controls an internal telescope system.

    BENEFITS

    • All materials are resistant to the effects of water corrosion
    • Telescopic pole allows the umbrella to open and close above table height
    • Electric cables are hidden from sight within four chamber column inside the centre mast
    • All struts in the open state replaceable
    • All umbrella parts recyclable
    • Designed to withstand wind speeds up to 40 km/h (with the proper ground anchorage)

    ACCESSORIES

    • LED lighting
    • Protective sleeve with a telescopic pole
    Close
  • Fabrics & Colors

    MDT-TEX 260

    100% polyester dual-sided acrylic coating). Mass ca. 260 g/m², water column pressure over 700 mm, flame retardant up to B1 - DIN 4102-1, M1, NFPA 701 - Flat and Folded.
