Aluminium Umbrellas

Type T - Telescope Umbrella

Material

Colors

  • M00FR White (00)
  • M11FR Yellow (11)
  • M21FR Beige (21)
  • M31FR Red (31)
  • M35FR Bordeaux (35)
  • M41FR Green (41)
  • M42FR Dark green (42)
  • M52FR Dark blue (52)
  • M81FR Anthracite (81)
  • M91FR Black (91)
  • M00A White (00)
  • M11A Yellow (11)
  • M21A Beige (21)
  • M22A Dark beige (22)
  • M31A Red (31)
  • M35A Bordeaux (35)
  • M42A Dark green (42)
  • M52A Dark blue (52)
  • M81A Anthracite (81)
  • M91A Black (91)

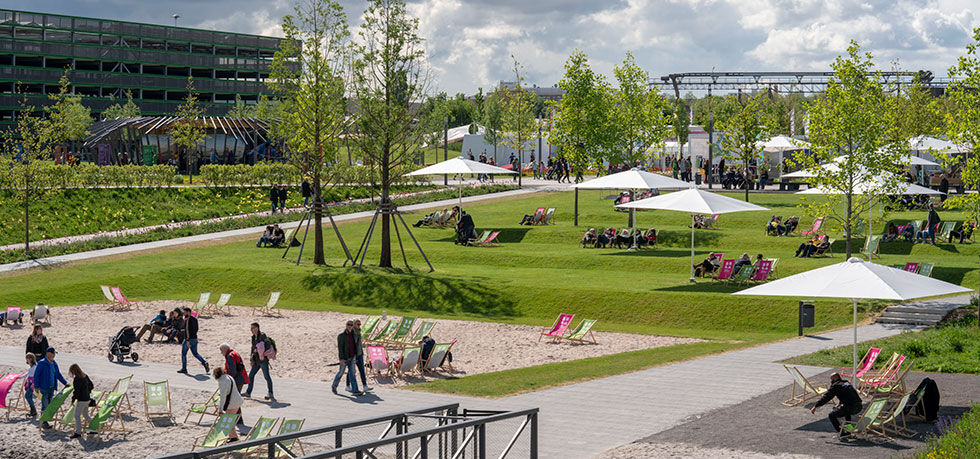

The parasol type T has a classic design and is available in round, square and rectangular. Due to its simple elegance, it does not appear overloaded when combined with accessories such as LED lamps, sound and heating.

This market umbrella from MDT-tex is available in square sizes 4x4m, 5x5m and 6x6m, rectangular sizes 4x5m and 5x6m and round sizes 5m and 6m in diameter. In contrast to other tensioning systems, the sunshade type T is opened via a removable crank handle.

MDT-tex also offers this parasol as special sizes up to a size of 10x10m or a diameter of 14m or 16m. MDT-tex manufactures its telescopic umbrella frames from aluminium. Type T can withstand wind speeds of up to 60 km/h. MDT-tex offers the type TS (up to 80 km/h) and the type TK up to 100 km/h for exposed locations with high wind loads.

The membrane fo the type T parasol can be selected from all materials offered by MDT-tex. However, please contact us for advice on finding the optimum membrane with sufficient strength and durability for you.

The market umbrella type T can be anchored mobile with a frame stand, or also firmly with a ground sleeve.

The telescopic umbrella is ideally suited for gastronomy, hotel facilities and the private sector.

  • Dimensions & Measures

  • Technical information

    DESCRIPTION

    The telescopic umbrella is one of the most important umbrella models in the MDT collection. Its expansion mechanism can be made much thinner as a result of it being constructed entirely from aluminum, and as a result of this design detail, it has an extremely elegant look. The umbrella’s functionality can also be maximized because of the material: The telescopic umbrella is available as standard with spans of up to 16 meters; the larger models (from 7 × 7 meters and up) come equipped with electric motors. Using the matching rain gutter membranes, several telescoping umbrellas can be joined together easily to create a fixed covered area outdoors. The product characteristics make the Model T one of the most popular umbrella models for in food service and industry. A version designed to withstand wind speeds of up to 130 km/h is available for particularly windy areas, such as in the mountains or by the ocean. In this version, all critical parts like the center pole and spokes are reinforced or have been replaced with stainless steel.

    COVER

    The cover is made up of individual segments which are screwed to the frame by Sterling Steel hooks at the top and by rust-proof screws at the ends of the spokes. The cover is replaceable and is fade, light and water resistant. It is designed to withstand all weather conditions and can be ordered with valances.

    ANCHOR

    • Frame base to be loaded with concrete blocks (240 kg total)
    • Ground tube
    • Foldable adapter for easy installation
    • Core drilling and ram-pin
    • Support plate

    PRINTING

    • Digital print
    • Screen print
    • Dispersion dye print

    MAST

    The spokes are made out of square aluminium bars (40x20x2 mm – 50x20x3 mm). The centre pole has a wounded aluminium profile. The umbrella profile contains a U profile for the attachment of the spokes. The frame is powder coated (polyester powder ca. 80 μ).

    • White RAL 9010 (standard)
    • Black RAL 9005
    • Silver RAL 9006

    MECHANICS

    The gearbox and the spindle are contained in the centre pole and can be operated by handle or using a motor.

    BENEFITS

    • Opening and closing by hand crank
    • All materials are water and corrosion resistant
    • All parts attached by screws can be easily replaced
    • Mechanics include a telescopic pole which allows the umbrella to open or close over the table
    • Maintenance-free gear box
    • Possible with lights and heating
    • Safely handles winds up to 60 km/h (with the proper bases)

    ACCESSORIES

    • Various lighting options
    • Transport case
    • Protective sleeve with telescopic pole
    • Event Platform and MDT Flex-Bar
    • Wind walls with different heights
    • Mobile ground flooring with wind walls that withstands any expected gust speeds
    • Heaters
    • Speakers
    • Electric motor for opening the umbrella (can also be used for the wind walls)
    • Rain gutter to connect adjoining umbrellas
    • Cloth side walls with doors or windows
    • Cabling is housed within the central mast
    Close
  • Fabrics & Colors

    MDT-TEX 260

    100% polyester dual-sided acrylic coating). Mass ca. 260 g/m², water column pressure over 700 mm, flame retardant up to B1 - DIN 4102-1, M1, NFPA 701 - Flat and Folded.

    MDT-TEX 300

    100% acrylic fabric. Mass ca. 300 g/m², water column pressure up to 350 mm.
