Aluminium Umbrellas
Demo Product New
Material
Colors
-
M00FR White (00) -
M11FR Yellow (11) -
M21FR Beige (21) -
M31FR Red (31) -
M35FR Bordeaux (35) -
M41FR Green (41) -
M42FR Dark green (42) -
M52FR Dark blue (52) -
M81FR Anthracite (81) -
M91FR Black (91)
Individual Configuration
Heater
Lighting
Sound System
Solar Panel
Printing
References
Product information
Description

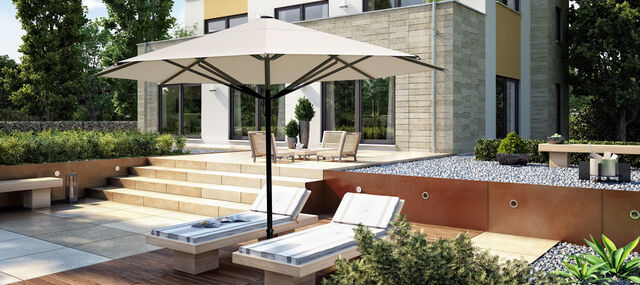

The Type S16 is a classic, and elegantly designed commercial partio umbrella that is not only aesthetically pleasing but also equipped with a balance system to prevent sudden falls and avoid any risk of injury. This model comes in square form, available in the sizes 2.5x2.5m and 3x3m, as well as round shape in the size of 3m, with optional sizes of 3.5x3.5m and 4m. The S16 is very easy to operate with its simple tensioning device, and its high-quality appearance makes it a popular choice in the private sector and in the commercial sectors such as gastronomy and hotel industry.
Benefits & Features
- Lightweight extruded hubs and frame-based covers ensure portability and durability
- Fabric-protecting corner caps and a simpler tensioning system enhance durability and longevity
- Full aluminium construction, including rectangular spokes and a round mast, resists water corrosion
- Easy to open and close with a single hub-mounted aluminium handle
- Electric cables are hidden within the four-chamber column for a clean appearance
- Recyclable materials and designed to withstand wind speeds of up to 60 km/h with proper anchorage
- Accessories such as LED lighting, a telescopic pole protective sleeve, rain gutter (for square umbrellas only), and frame base cover are available to enhance functionality and aesthetics.
Specifications
- Cover: Replaceable, fade, light and water-resistant, withstands all weather conditions, attached to spoke ends with aluminium end caps and stainless steel bolts.
- Anchor: Frame base to be loaded with concrete blocks or ground tube type 060. Printing:
- Digital print, screen print, dispersion dye print.
- Mast: Umbrella spokes made of rectangular aluminium sections of 30 x 20 x 2 mm, the mast of a round aluminium section of 60 mm, and an aluminium telescope with section dimensions of 30 x 30 x 3 mm.
- Mechanics: Tension mechanism operated by an aluminium handle with a zinc-coated spring steel strap that controls an internal telescope system.
- Accessories: LED lighting, protective sleeve with a telescopic pole, rain gutter to connect adjoining umbrellas (only square umbrellas), and cover for the frame base.
- Fabrics & Colors:
- MDT-tex 260 (polyester, coating-polyurethane), weight- 260 g/gsm, tear resistance warp - 2000 N, flame retardant up to B1-DIN 4102-1, M1, NFPA 701 - Flat and Folded.
- Optional MDT-tex 300 (polyacrylate), weight- 300 g/gsm, tear resistance warp - 1450 N.
