NEW SUN PROTECTION DESIGNED
MUNICH
LOCATED IN THE ODENWALD, SPECIFICALLY BUCHEN, THE SHOPPING CENTER SCHIFFERDECKER IS LOCATED IN A CENTRAL PART OF THE CITY, WHILE STILL HAVING MINIMAL TRAFFIC PROBLEMS. THE SHOPPING PARADISE HAS AN AREA OF 18.000 SQM RETAIL SPACE AND 500 PARKING SPACES. MANY SHOPS INVITE GUESTS TO STROLL AND LINGER. FOOD, CLOTHES, SHOES, TOYS, ETC. CAN BE FOUND HERE. IN THE COURTYARD OF THE SHOPPING AREA IS A PIZZERIA, A PHOTO STORE, PAINTING STORE, A FLOWER STORE, AND A BANK TERMINAL. AT THIS LOCATION, A TEXTILE CANOPY WAS INSTALLED BY THE COMPANY MDT. THUS, THE PASSERS-BY CAN REACH THE NEAREST STORE WITHOUT GETTING WET AND DURING THE SUMMER, THE CANOPY PROVIDES A PLEASANT SHADE.
CANOPY FOR SUN AND RAIN PROTECTION

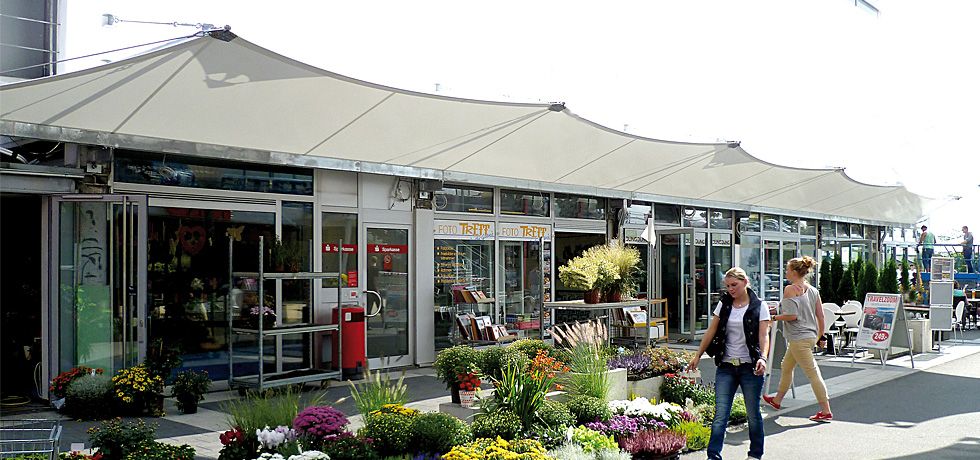

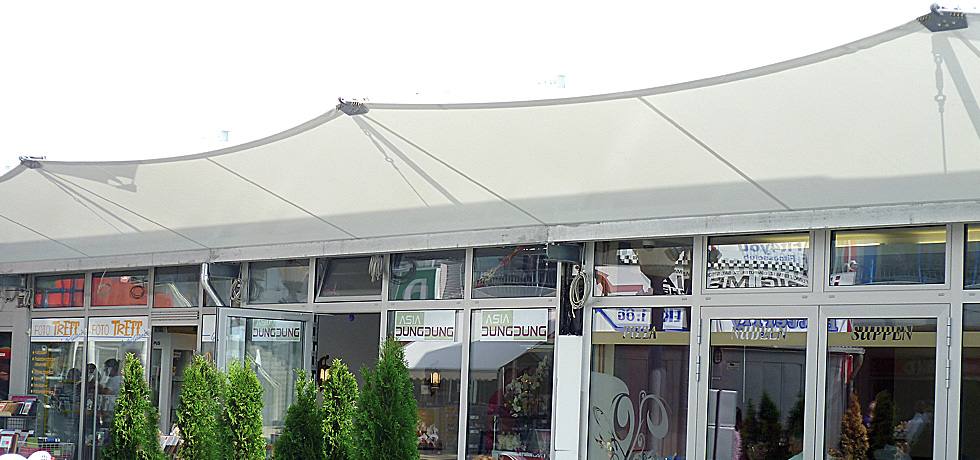

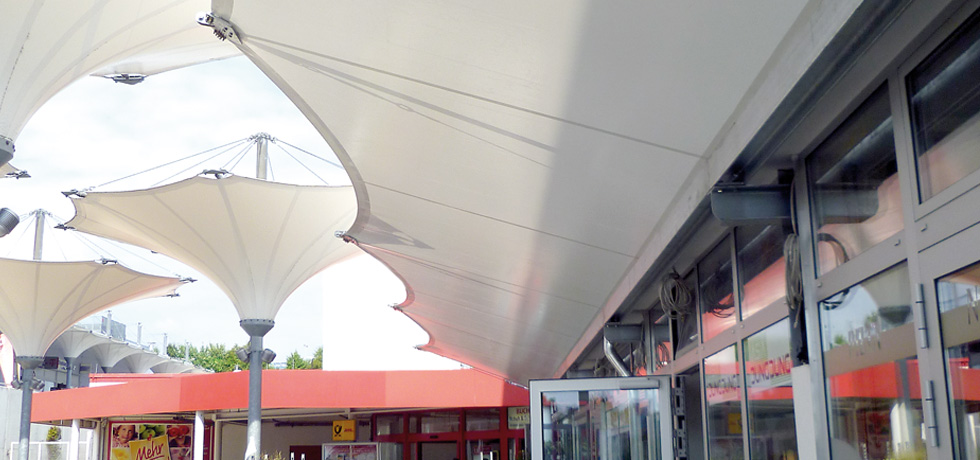

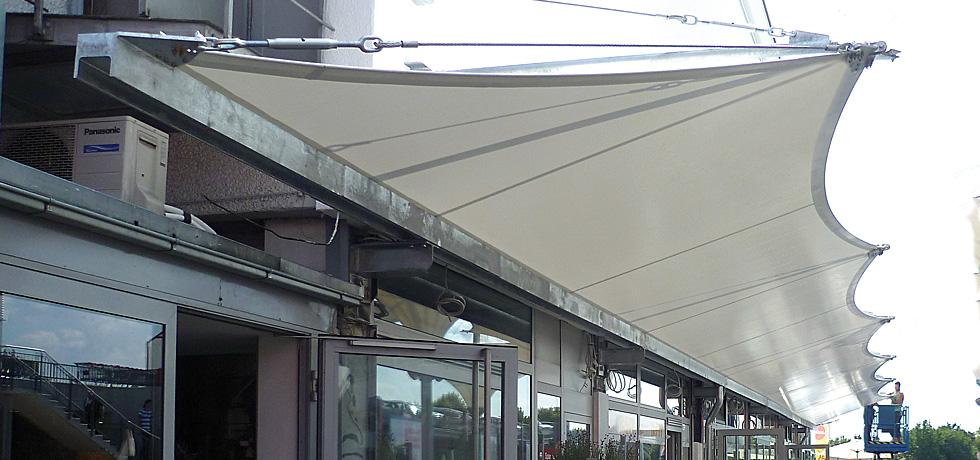

As roof extension/roof addition to the Shopping Center Schifferdecker in Buchen, a textile roof was installed by the company MDT. The idea was to protect customers from sun and rain. The canopy was produced from PVC with a weight of 750 g / sqm and has a size of 30 x 2.4 meters. The membrane hangs from the wall with the help of support struts and steel cables. The bracket on the wall fulfills two tasks. First, the fastening of the membrane to the side wall. Secondly, it acts as a drainage system because it is connected to the drainage.
