Type T

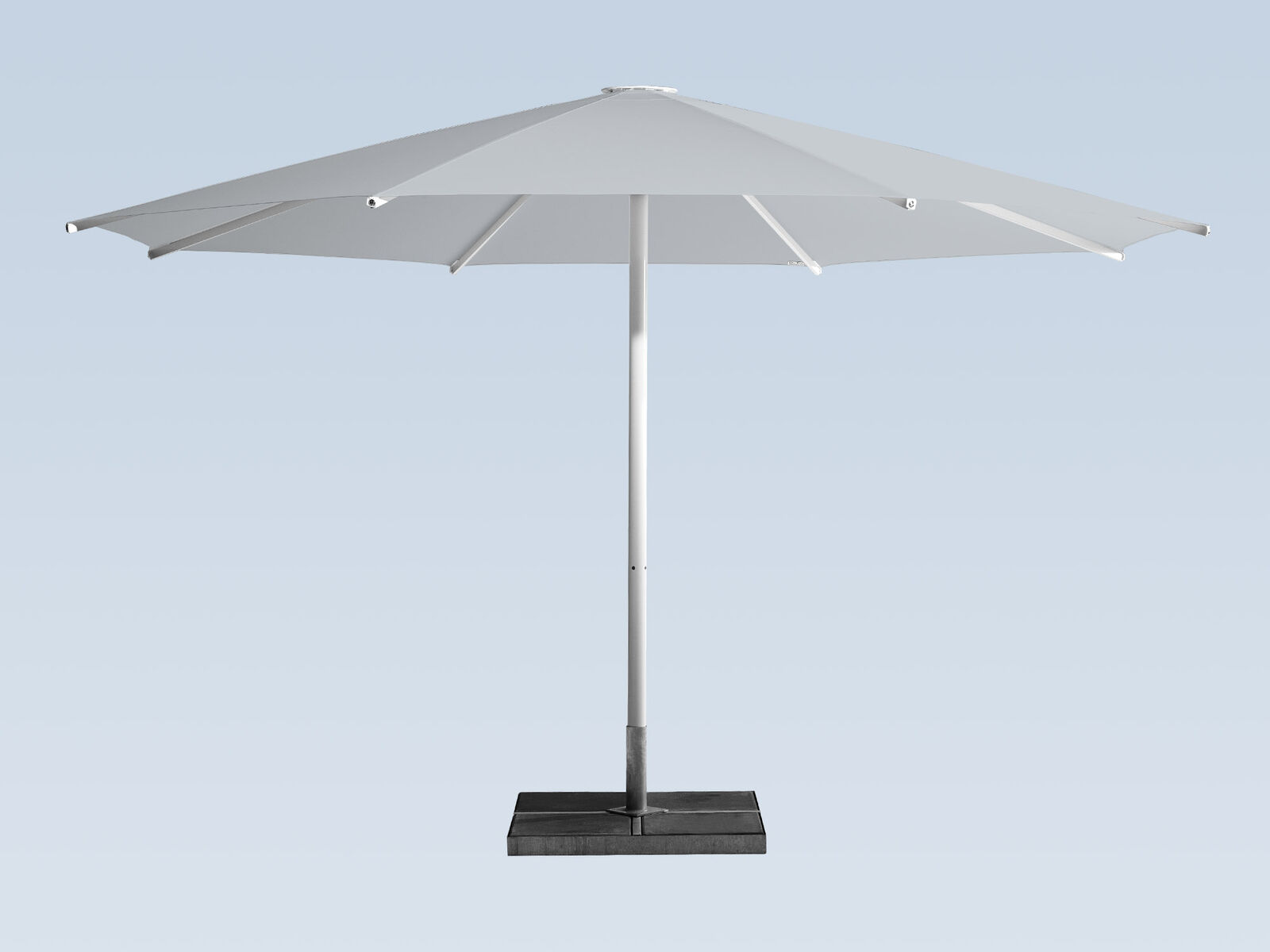

The telescopic umbrella is one of the most important umbrella models in the MDT collection. Its expansion mechanism can be made much thinner as a result of it being constructed entirely from aluminum, and as a result of this design detail, it has an extremely elegant look. The umbrella’s functionality can also be maximized because of the material: The telescopic umbrella is available as standard with spans of up to 16 meters; the larger models (from 7 × 7 meters and up) come equipped with electric motors. Using the matching rain gutter membranes, several telescoping umbrellas can be joined together easily to create a fixed covered area outdoors. The product characteristics make the Model T one of the most popular umbrella models for in food service and industry. A version designed to withstand wind speeds of up to 130 km/h is available for particularly windy areas, such as in the mountains or by the ocean. In this version, all critical parts like the center pole and spokes are reinforced or have been replaced with stainless steel.

The cover is made up of individual segments which are screwed to the frame by Sterling Steel hooks at the top and by rust-proof screws at the ends of the spokes. The cover is replaceable and is fade, light and water resistant. It is designed to withstand all weather conditions and can be ordered with valances.

• Frame base to be loaded with concrete blocks (240 kg total)
• Ground tube
• Foldable adapter for easy installation
• Core drilling and ram-pin
• Support plate

• Digital print
• Screen print
• Dispersion dye print

The spokes are made out of square aluminium bars (40x20x2 mm – 50x20x3 mm). The centre pole has a wounded aluminium profile. The umbrella profile contains a U profile for the attachment of the spokes. The frame is powder coated (polyester powder ca. 80 μ).

• White RAL 9010 (standard)
• Black RAL 9005
• Silver RAL 9006

The gearbox and the spindle are contained in the centre pole and can be operated by handle or using a motor.

• Opening and closing by hand crank
• All materials are water and corrosion resistant
• All parts attached by screws can be easily replaced
• Mechanics include a telescopic pole which allows the umbrella to open or close over the table
• Maintenance-free gear box
• Possible with lights and heating
• Safely handles winds up to 60 km/h (with the proper bases)

• Various lighting options
• Transport case
• Protective sleeve with telescopic pole
• Event Platform and MDT Flex-Bar
• Wind walls with different heights
• Mobile ground flooring with wind walls that withstands any expected gust speeds
• Heaters
• Speakers
• Electric motor for opening the umbrella (can also be used for the wind walls)
• Rain gutter to connect adjoining umbrellas
• Cloth side walls with doors or windows
• Cabling is housed within the central mast
